Power Electronics Design — Done Right, Every Time

If you are developing a power electronics product — an EV charger, a battery management system, a solar inverter, or a high-power converter — you already know that finding a design partner who genuinely understands the hardware is not straightforward. Circuit Brilliance was built for exactly that gap. Every case study on this page represents a complete design engagement — schematic, simulation, PCB layout, and documentation — executed with the same structured methodology we bring to every client project.

In Active Execution

10kW Bidirectional On-Board Charger

SiC MOSFET  |  400V Bus  |  Dual Active Bridge + Active PFC  |  >96% Efficiency

If your product needs bidirectional power flow, Vehicle-to-Grid capability, or high-efficiency EV charging at the 400V bus level — this design covers exactly that ground.

Execution Progress

1. Schematic
Complete
2. Simulation
In Progress
3. PCB Layout
In Progress
4
4. Documentation
Upcoming

Key Specifications

Power Rating
10kW continuous
Input Volts
230V AC (1-ph) / 400V AC (3-ph)
Output Volts
400V DC
Switch Device
SiC MOSFET
Frequency
100kHz
Topology
DAB + Active PFC front end
Efficiency
>96% Target

Design Highlights

Dual Active Bridge (DAB) topology — phase shift modulation for bidirectional power flow

Active PFC front end — unity power factor, full grid compliance

SiC MOSFET full bridge — high frequency operation with low switching loss

High frequency isolation transformer — custom design with interleaved windings

CAN bus communication — SOC feedback and charge control interface

PCB Design Challenges Mastered

Challenge Area
Engineering Detail
High Voltage Layout
Creepage and clearance compliance for 400V bus
Gate Driver Isolation
Isolated SiC gate driver layout
Thermal Management
Multi-layer copper pour and thermal via array for SiC device heat dissipation
EMI / EMC Mitigation
Common mode choke, Y-capacitor placement, shielding strategy at 100–150kHz switching
Multilayer Stackup
Power, ground, signal, and control layer segregation

Circuit Brilliance Frameworks Applied

CB-SCC CB-LBF CB-FMEA CB-Thermal CB-GAF CB-CRAFT
CB-SCC Verified

Insulation coordination for 400V bus verified at schematic and PCB level.

CB-LBF Verified

Full loss budget scan across SiC conduction, switching, magnetics, and gate drive.

CB-FMEA Verified

Critical failure mode analysis for bridge shoot-through and over-voltage scenarios addressed.

CB-Thermal Verified

Thermal stress and multi-layer copper pour strategy validated for SiC device heat dissipation.

CB-GAF Verified

Gate drive commutation loop inductance minimized; high-frequency parasitic assessment complete.

CB-CRAFT Verified

Nine-stage PCB execution from layout intelligence extraction to Gerber package.

Full Design Deliverables

Schematic : full system

PSpice Simulation : switching waveforms, efficiency curve, thermal stress, load transient

PCB Layout : high voltage compliant, thermally managed, EMI-conscious, DFM verified

Documentation : design calculations, component rationale, compliance notes, test plan

Planned Showcase Designs

Demonstrating full domain breadth — these designs are currently in preparation to showcase our complete engineering capability across the power electronics landscape.

Battery Management Systems

20kW High Voltage BMS — 96S Lithium Ion Pack

Mixed Signal | Distributed 96S Architecture | 350V Bus | 20kW

  • 96S daisy-chain cell monitoring — LTC6813 or BQ79616
  • Active cell balancing — inductor-based energy transfer between cells
  • High voltage isolation barrier — 1000V+ rated for full pack safety
  • Precision current measurement — coulomb counting for SOC estimation
  • CAN bus communication — pack state, SOC, SOH reporting
Renewable Energy Electronics

15kW Three-Phase Solar PV Grid-Tie Inverter

IGBT Modules | Three-Phase Full Bridge + LCL Filter | 700V DC Bus | 15kW

  • Three-phase IGBT full bridge — six-switch topology with dead-time control
  • LCL output filter — harmonic attenuation for grid compliance, THD <3%
  • DSP controller — MPPT algorithm, grid synchronisation, protection
  • Phase Locked Loop (PLL) — precise grid voltage synchronisation
  • Anti-islanding protection — active frequency drift implementation

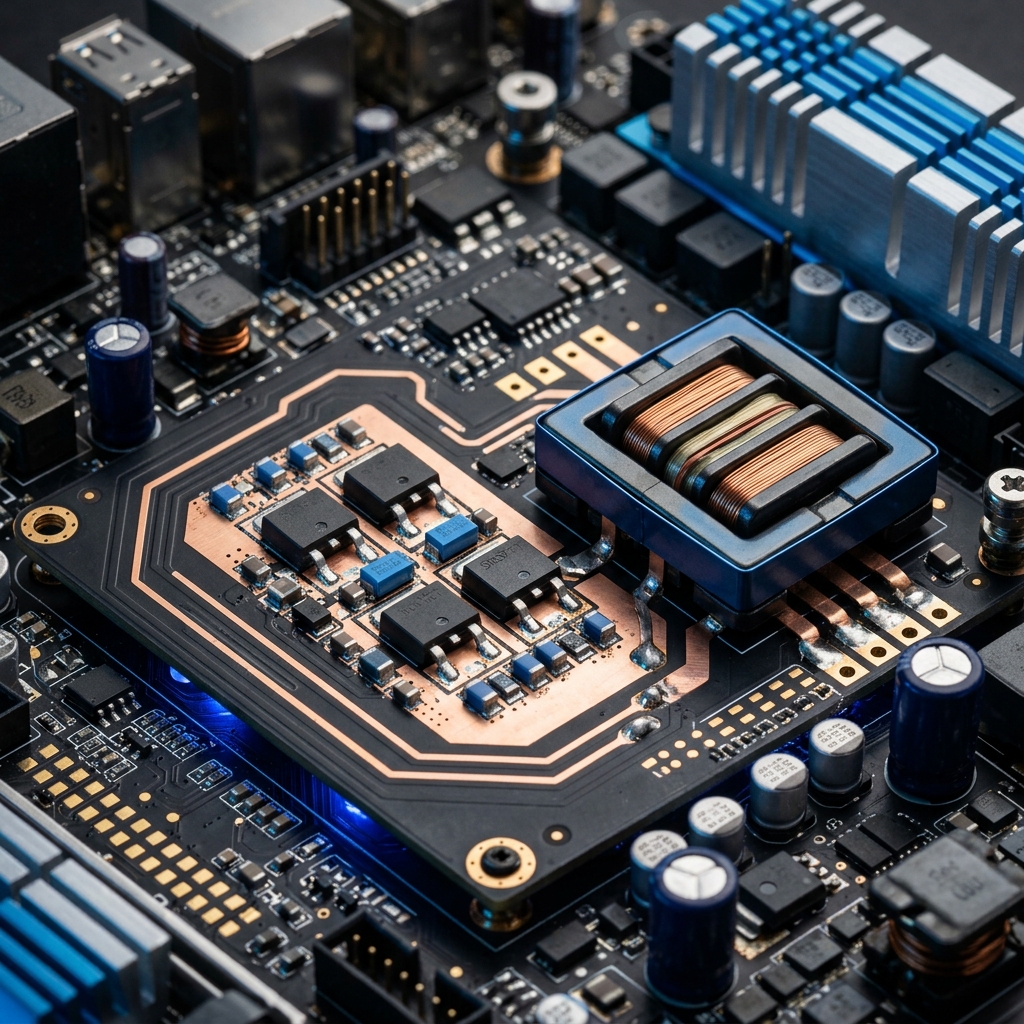

Power Converters & SMPS

7kW Three-Phase GaN Vienna Rectifier

GaN HEMT | Three-Level Vienna Topology | 800V DC Output | 7kW

  • Three-level Vienna topology — reduced voltage stress, lower THD
  • GaN HEMT at 300-500kHz — ultra-low gate charge, zero reverse recovery
  • 800V DC output — next-generation EV charging and industrial drive ready
  • Ultra-high efficiency target >98% — GaN switching loss advantage
  • Ultra-low parasitic inductance layout — Kelvin connections, tight power loop
